[Unity] Rest Api 서버 이용하여 유저정보 관리 #2 (MySQL)

0. 개요

이전 글에서 분량 문제로 추가하지 못한 Insert, Delete, Update 기능을 추가하겠습니다.



1. 사전 작업

[Unity] RestApi 서버 이용하여 유저정보 관리 #1 (MySQL) :: 별빛상자 (tistory.com)

[Unity] RestApi 서버 이용하여 유저정보 관리 #1 (MySQL)

여기까지 되었다면 UI를 수정해주겠습니다.

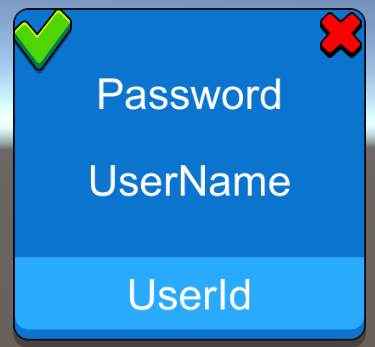

1_1 UserCellView 수정

유저 데이터에 내용을 변경하면 좌상단에 체크 오브젝트를 표시해서 누를 경우 업데이트 내용이 서버에 반영되게 구현을 해볼 예정입니다.

우상단에 X 표시를 누를 경우엔 서버에 유저에 데이터 삭제 요청을 보낼 예정입니다.



1_2 신규유저 추가 버튼

우상단에 + 버튼을 추가하여 신규 유저를 추가할 수 있는 버튼을 만들었습니다. 해당버튼을 누르게 되면 신규유저 추가 화면이 나올 예정입니다.

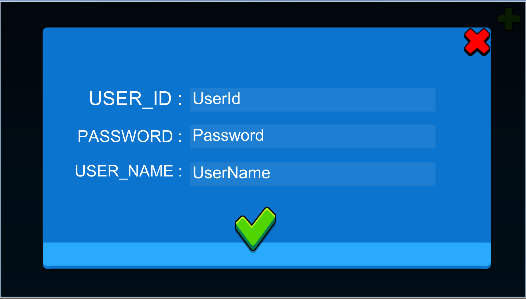

신규유저 추가





2. UI 기능 작업



Packets.cs

using System.Collections.Generic;

public class Packets
{
    public class user
    {
        public string user_id;
        public string user_password;
        public string user_name;
    }

    public class req_get_users
    {

    }
    public class res_get_users
    {
        public int status_code;
        public List<user> users;
    }


    public class req_insert_user
    {
        public string user_id;
        public string user_password;
        public string user_name;
    }

    public class res_insert_user
    {
        public int status_code;
    }

    public class req_delete_user
    {
        public string user_id;
    }

    public class res_delete_user
    {
        public int status_code;
    }

    public class req_update_user
    {
        public string user_id;
        public string user_password;
        public string user_name;
    }

    public class res_update_user
    {
        public int status_code;
    }

}



HTTPManager에 서버의 정의해둔 Api를 호출하는 부분을 추가하겠습니다.



HTTPManager.cs

using Newtonsoft.Json;
using System.Collections;
using System.Collections.Generic;
using System.Text;
using UnityEngine;
using UnityEngine.Events;
using UnityEngine.Networking;

public class HTTPManager : MonoBehaviour
{
    public static HTTPManager instance;

    public UnityAction<List<Packets.user>> onGetUsers;

    public void RequestUsers()
    {
        StartCoroutine(RequestUsersImpl());
    }

    public void RequestInsertUser(Packets.req_insert_user packet)
    {
        StartCoroutine(RequestInsertUserImpl(packet));
    }

    public void RequestDeleteUser(Packets.req_delete_user packet)
    {
        StartCoroutine(RequestDeleteUserImpl(packet));
    }

    public void RequestUpdateUser(Packets.req_update_user packet)
    {
        StartCoroutine(RequestUpdateUserImpl(packet));
    }

    private string _host = "http://localhost";
    private int _port = 3000;

    private void Awake()
    {
        instance = this;
    }

    private IEnumerator RequestInsertUserImpl(Packets.req_insert_user packet)
    {
        var url = string.Format("{0}:{1}{2}", _host, _port, "/users/insertUser");

        Debug.Log(url);
        var www = new UnityWebRequest(url, "POST");
        // 객체를 => 문자열 직렬화
        var json = JsonConvert.SerializeObject(packet);
        // 문자열 => byte 배열로 직렬화
        var rawdata = Encoding.UTF8.GetBytes(json);

        www.uploadHandler = new UploadHandlerRaw(rawdata);  // 요청
        www.downloadHandler = new DownloadHandlerBuffer();  // 응답
        www.SetRequestHeader("Content-Type", "application/json");

        yield return www.SendWebRequest();

        if(www.result == UnityWebRequest.Result.Success)
        {
            Debug.LogFormat("---->{0}", www.downloadHandler.text);
            var res_signup = JsonConvert.DeserializeObject<Packets.res_insert_user>(www.downloadHandler.text);    //역직렬화
            Debug.LogFormat("status : {0}", res_signup.status_code);
        }
        else
        {
            Debug.LogFormat("에러");
        }
    }

    private IEnumerator RequestDeleteUserImpl(Packets.req_delete_user packet)
    {
        var url = string.Format("{0}:{1}{2}", _host, _port, "/users/deleteUser");

        Debug.Log(url);
        var www = new UnityWebRequest(url, "POST");
        // 객체를 => 문자열 직렬화
        var json = JsonConvert.SerializeObject(packet);
        // 문자열 => byte 배열로 직렬화
        var rawdata = Encoding.UTF8.GetBytes(json);

        www.uploadHandler = new UploadHandlerRaw(rawdata);  // 요청
        www.downloadHandler = new DownloadHandlerBuffer();  // 응답
        www.SetRequestHeader("Content-Type", "application/json");

        yield return www.SendWebRequest();

        if(www.result == UnityWebRequest.Result.Success)
        {
            Debug.LogFormat("---->{0}", www.downloadHandler.text);
            var res_signup = JsonConvert.DeserializeObject<Packets.res_insert_user>(www.downloadHandler.text);    //역직렬화
            Debug.LogFormat("status : {0}", res_signup.status_code);
        }
        else
        {
            Debug.LogFormat("에러");
        }
    }

    private IEnumerator RequestUpdateUserImpl(Packets.req_update_user packet)
    {
        var url = string.Format("{0}:{1}{2}", _host, _port, "/users/updateUser");

        Debug.Log(url);
        var www = new UnityWebRequest(url, "POST");
        // 객체를 => 문자열 직렬화
        var json = JsonConvert.SerializeObject(packet);
        // 문자열 => byte 배열로 직렬화
        var rawdata = Encoding.UTF8.GetBytes(json);

        www.uploadHandler = new UploadHandlerRaw(rawdata);  // 요청
        www.downloadHandler = new DownloadHandlerBuffer();  // 응답
        www.SetRequestHeader("Content-Type", "application/json");

        yield return www.SendWebRequest();

        if(www.result == UnityWebRequest.Result.Success)
        {
            Debug.LogFormat("---->{0}", www.downloadHandler.text);
            var res_signup = JsonConvert.DeserializeObject<Packets.res_insert_user>(www.downloadHandler.text);    //역직렬화
            Debug.LogFormat("status : {0}", res_signup.status_code);
        }
        else
        {
            Debug.LogFormat("에러");
        }
    }

    private IEnumerator RequestUsersImpl()
    {
        var url = string.Format("{0}:{1}{2}", _host, _port, "/users/getUsers");
        Debug.Log(url);
        var www = new UnityWebRequest(url, "GET");
        www.downloadHandler = new DownloadHandlerBuffer();  //응답
        yield return www.SendWebRequest();
        if (www.result == UnityWebRequest.Result.Success)
        {
            var res_get_users = JsonConvert.DeserializeObject<Packets.res_get_users>(www.downloadHandler.text);
            if (res_get_users.status_code == 200)
            {
                onGetUsers(res_get_users.users);
            }
        }
        else
        {
            Debug.Log("에러");
        }
    }
}



각각 Insert, Delete, Update에 대한 호출 부분을 추가하였습니다.



UserCellView.cs

using UnityEngine;
using UnityEngine.UI;

public class UserCellView : MonoBehaviour
{
    public Text textUserId;
    public InputField  inputFieldPassword;
    public InputField inputFieldUserName;

    public GameObject submitBtnGo;

    public void Init(Packets.user user)
    {
        _userId = user.user_id;
        _password = user.user_password;
        _userName = user.user_name;

        textUserId.text = _userId;
        inputFieldPassword.text = _password;
        inputFieldUserName.text = _userName;

        submitBtnGo.SetActive(false);
    }

    public void CheckUpdateInfo()
    {
        if (_isUpdate)
            return;

        // 유저 데이터를 변경한 경우
        if (inputFieldPassword.text != _password || inputFieldUserName.text != _userName)
        {
            _isUpdate = true;
            submitBtnGo.SetActive(true);
        }
    }

    public void OnClickUpdate()
    {
        if (inputFieldPassword.text == "")
            return;
        if (inputFieldUserName.text == "")
            return;

        Packets.req_update_user packet = new Packets.req_update_user
        {
            user_id = _userId,
            user_password = inputFieldPassword.text,
            user_name =  inputFieldUserName.text
        };

        HTTPManager.instance.RequestUpdateUser(packet);
        TestMain.instance.Refresh();
    }

    public void OnClickDelete()
    {
        Packets.req_delete_user packet = new Packets.req_delete_user
        {
            user_id = _userId
        };

        HTTPManager.instance.RequestDeleteUser(packet);
        TestMain.instance.Refresh();
    }

    private string _userId;
    private string _password;
    private string _userName;
    private bool _isUpdate;
}





TestMain.cs

using UnityEngine;
using UnityEngine.UI;

public class TestMain : MonoBehaviour
{
    public static TestMain instance;

    public GameObject userCellviewPrefab;
    public GameObject insertUserGo;
    public RectTransform content;

    public InputField inputFieldUserId;
    public InputField inputFieldPassword;
    public InputField inputFieldUserName;

    public void OnClickShowInsertUser()
    {
        inputFieldUserId.text = "";
        inputFieldPassword.text = "";
        inputFieldUserName.text = "";

        insertUserGo.SetActive(true);
    }
    public void OnClickHideInsertUser()
    {
        insertUserGo.SetActive(false);
    }

    public void OnClickInsertUser()
    {
        if (inputFieldUserId.text == "")
            return;
        if (inputFieldPassword.text == "")
            return;
        if (inputFieldUserName.text == "")
            return;

        Packets.req_insert_user packet = new Packets.req_insert_user
        {
            user_id = inputFieldUserId.text,
            user_password = inputFieldPassword.text,
            user_name =  inputFieldUserName.text
        };
        HTTPManager.instance.RequestInsertUser(packet);

        Refresh();
        OnClickHideInsertUser();
    }

    public void Refresh()
    {
        foreach (Transform child in content)
        {
            Destroy(child.gameObject) ;
        }
        HTTPManager.instance.RequestUsers();
    }

    private void Start()
    {
        HTTPManager.instance.onGetUsers = (users) =>
        {
            foreach (var user in users)
            {
                var go = Instantiate<GameObject>(userCellviewPrefab, content);
                var cellview = go.GetComponent<UserCellView>();
                cellview.Init(user);
            }
        };
        HTTPManager.instance.RequestUsers();
    }

    private void Awake()
    {
        instance = this;
    }

}

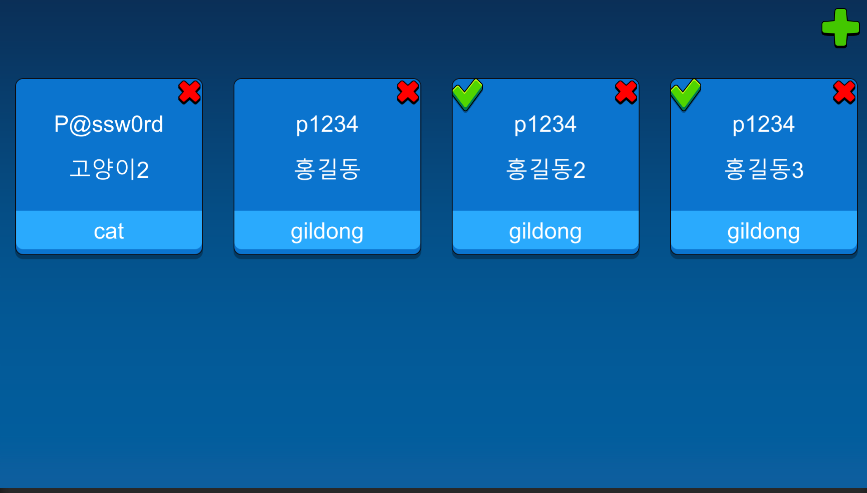

3. 완성









감사합니다.
